Sungrow SBR128 battery

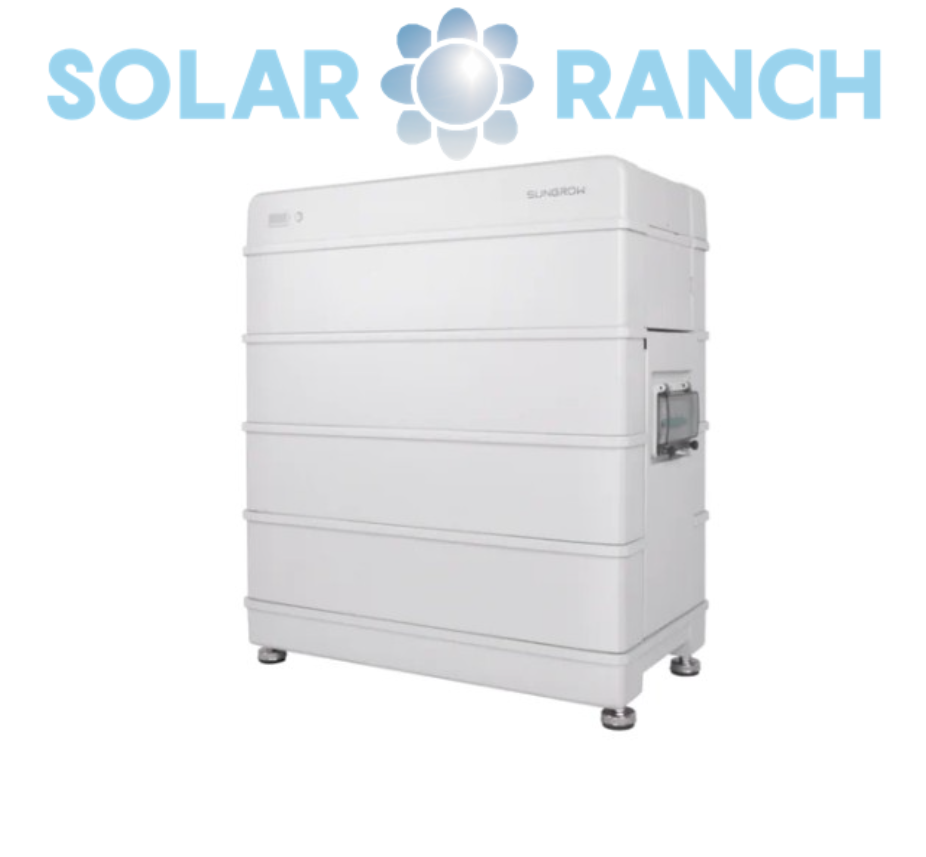

Sungrow SBR128 high voltage lithium iron phosphate battery

The Sungrow SBR battery storage starts with 4 modules, whereby the storage can be expanded up to 8 modules. The output can be modularly expanded from 12.8 kWh to up to 25.6 kWh. Up to 4 units can be operated in parallel in a capacity range of 9-100 kWh. This makes the system very flexible. Due to the low weight of only 33 kg per module and the slim design, the memory can be installed by one person via plug and play.

The Sungrow 3-phase hybrid inverter recognizes the battery storage after installation and automatically integrates it into the system. The optimally coordinated emergency power system with state-of-the-art load control and a switching time of less than 20 ms offers maximum reliability.

product benefits

• Permanent 30 A charging and discharging current possible
• Can be expanded to up to 8 modules per unit over the entire service life
• Up to 4 units can be connected in parallel for a capacity range between 9-100 kWh
• Certified multi-level protection concept including VDE 2510-50
• Due to its low weight and compact design, it can be installed by just 1 person
• Plug and play between the individual battery modules
• Powerful emergency/backup power and off-grid functionality

Product features Sungrow SBR128 storage with 12.8 kWh

• Battery capacity: 12.8 kWh
• Rated Voltage: 256V
• Max Output Current: 30A
• Peak output current: 42A for 10s
• Weight: 147kg
• Protection class: IP55
• Dimensions: 625x675x330mm

Scope of delivery:

• 4 x Sungrow SBR 3.20kWh Battery Module
• 1 x Sungrow SBR Socket and Accessories
