SolarEdge Home package with 10 kVA and 9.2 kWh

SolarEdge Home battery low voltage 9.2 kWh with SolareEdge Home hub inverter SE10K -RWB48

With the new low-voltage battery from SolarEdge, there is a three-phase one for the first time Storage inverter combination from a single source by SolarEdge.

The advantages of a storage system plus inverter from one company are clear maximum performance, maximum efficiency and a competent contact person for questions and problems.

The SolarEdge Home battery low voltage can be varied between one and five battery modules. With this, the net capacity between 4.6 kWh up to 23 kWh to be chosen.

Product advantages:

• Individual capacity
• simple plug & play installation with automatic SetApp configuration
• Scalable between 4.6 & 23 kWh
• complete set

Product features SolarEdge Home battery low voltage:

• Weight per battery module 54.7 kg
• Communication: RS485 between modules, CAN bus to inverter
• floor mount
• IP65
• Cell chemistry: lithium ions (lithium iron phosphate)
• Dimensions (W x H x D): 540 x 500 x 240 mm per module

Product features of the SolarEdge Home Hub three-phase hybrid inverter SE10K:

• AC Rating: 10kVA, 3-phase
• Maximum battery charge/discharge power: 5 kW
• DC or AC system with SolarEdge inverter
• PV input: 2 pairs of MC4 inputs
• Battery connection: 1 pair M8 cable lug
• Communication: Ethernet RJ45
• Protection class: IP 65
• Dimensions: 907 x 317 x 192 mm (H x W x D)
• Weight: gross 40 kg / net 37 kg
• Integrated SolarEdge Home network

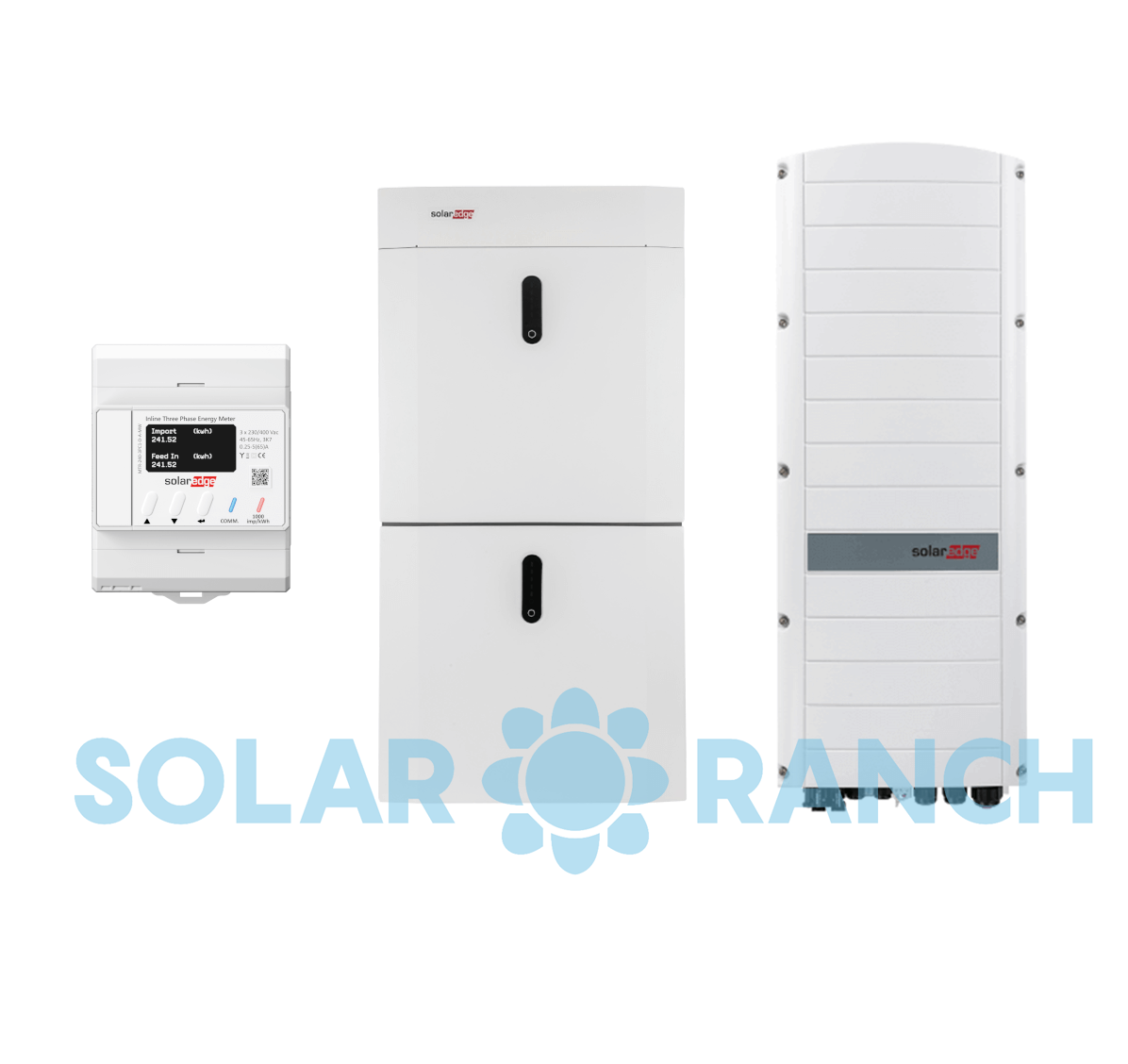

Package components:

• SolarEdge Home Energy Meter Item No.: 7066
• SolarEdge Home battery low voltage 9.2 kWh Art. No.: 7495 including all required cables and accessories
• SolarEdge Home Hub Inverter 10 kVA Item No.: 7410
• Connection cable battery inverter Art. No.: 7419
