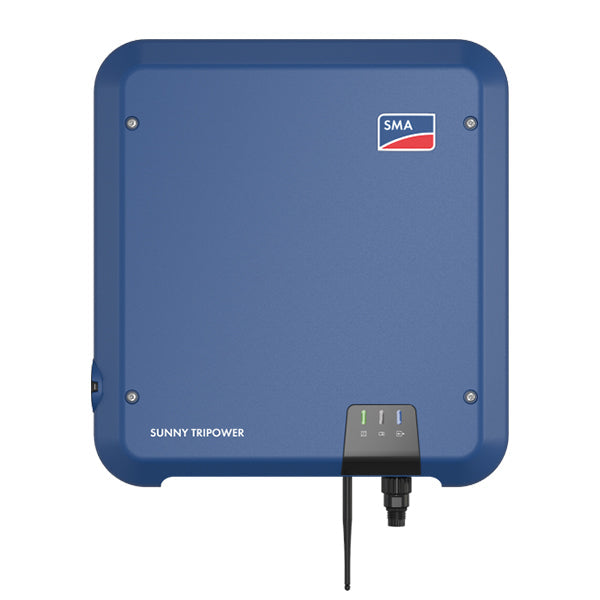

SMA Sunny Tripower 5.0

SMA Sunny Tripower 5.0 for small systems up to 9000 W

SMA has been setting technical trends and driving the development of renewable energies for over 35 years.

The newly developed SMA Sunny Tripower 5.0 Inverter enables a faster installation simultaneously Easier start-up thanks to the new web interface . Connection to the Internet is via WLAN or Ethernet connection. This newly developed web-based interface enables configuration with a smartphone or traditionally on a laptop. The one required in Germany 70 percent curtailment or even the 0 percent curtailment is ensured by direct communication with the installation of the SMA Energy Meter or SMA Home Manager 2.0.

The SMA inverter weighs only 17 kg and is therefore lightweight.

product benefits

• Fast commissioning thanks to the intuitively operated web user interface
• Easy installation thanks to the low weight of 17 kg and the intelligent connection concept
• Wide input voltage range from 140 V to 800 V
• Factory integrated Ethernet and WLAN interface
• System monitoring via SMA Sunny Portal
• dynamic control with SMA Energy Meter or Home Manager 2.0
• RS485 for Tigo TS4-R
• including the SMA Smart Connected service package

product properties

• 5.0 kVA power 3-phase
• 2 MPP trackers 215 - 800 V
• Ethernet RJ45
• WIRELESS INTERNET ACCESS
• Protection class: IP65
• Dimensions: 435 x 470 x 176mm
• Weight: 17kg

Downloads

• SMA Sunny Tripower 5.0 data sheet
• SMA Sunny Tripower 5.0 Operating Manual
