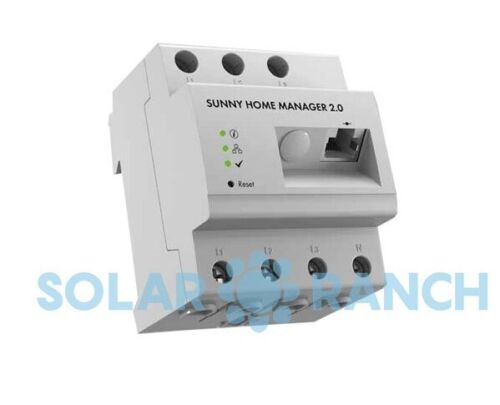

SMA Sunny Home Manager 2.0

• Manufacturer: SMA
• Manufacturer Part Number.: HM-20
• Solar ranch item no.: XXX

SMA Sunny Home Manager 2.0, the new Smart Home control center from SMA

The successor to the successful Sunny Home Manager Bluetooth (HM-BT-10) represents a complete Energy monitoring and energy management solution The new Sunny Home Manager 2.0 (HM-20) contains a Integrated measuring device , so that a separate SMA Energy Meter is no longer required for standard applications with power measurement at the grid connection point. The SMA Energy Meter will of course continue to be available as a separate measuring unit for PV generation.

product benefits

• SMA Energy Meter and Home Manager in one device
• Weather forecasts for consumer control and battery charging
• Communication with the SMA Sunny Portal
• consumer control over Edimax SP-2101W
• Electric charging with the SMA EV chargers or the Mennekes AMTRON Professional or. AMTRON charge control

product properties

• DIN rail mounting with 4TE
• 3-phase direct measurement up to 63 A
• Transformer measurement with 5 A output current
• a maximum of 24 devices, 12 of which are devices with load control
• Visualization of an Energy Meter as a production counter
• Setup via the SMA Sunny Portal
• Weight: 0.3kg

A maximum of 24 devices can be connected to a Sunny Home Manager. The number of controllable components (radio-controlled sockets, heat pump or Mennekes Wallbox) must not exceed 12.

With the SMA Home Manager 2.0 you get an SMA Energy Meter and an SMA Sunny Home Manager in just one device. This saves costs and installation time.

Downloads

• SMA Sunny Home Manager 2.0 data sheet
• SMA Sunny Home Manager 2.0 Operating Manual
• SMA Sunny Home Manager 2.0 Quick Guide
