SMA Sunny Boy Storage 5.0

SMA Sunny Boy Storage 5.0

Regular price €0,00
Regular price Sale price €0,00
Sale Sold out
Shipping calculated at checkout.
  •  SMA
  • SBS5.0-10
  • SBS5.0-10
  •  XXX
phases: 1
AC power: 5kW
Voltage range: 100 to 550 volts
Guarantee: ten years
Communication: WLAN, speed wire

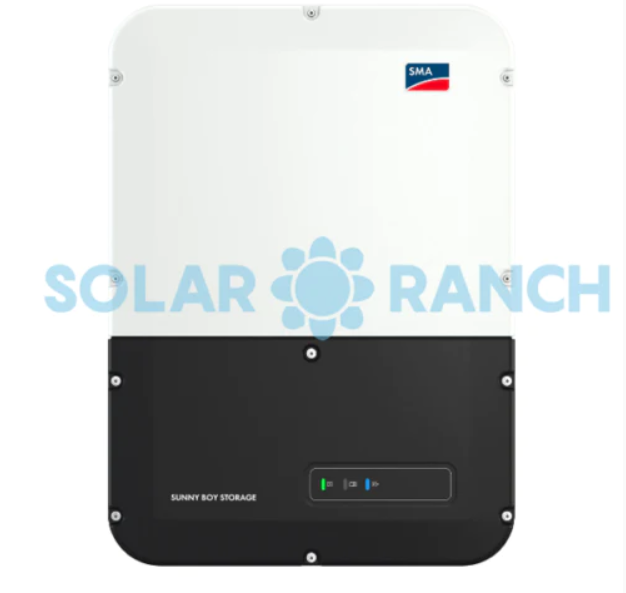

SMA Sunny Boy Storage 5.0

High-voltage battery storage are in trend. With the SMA Sunny Boy Storage 5.0, up to three different high-voltage batteries can be operated on one battery inverter. SMA is thus presenting the first Multistring battery inverter. Thanks to the proven AC coupling, the Sunny Boy Storage is ideally suited for new and retrofit systems with an annual consumption of 3000 kWh to 15000 kWh.

product benefits

  • High-voltage battery inverter
  • Wall bracket already integrated in the back of the housing
  • WLAN and web-based user interface for configuration
  • AC system for new installation and retrofit
  • Can also be used flexibly with non-SMA inverters thanks to an additional SMA Energy Meter
  • Quality: Made in Germany

product properties

  • 4.6 kW system power 1-phase AC
  • 3 independent high-voltage battery inputs max. 600 V battery voltage
  • WLAN and Speedwire integrated
  • Protection class: IP 65
  • Product guarantee: 10 years
  • Dimensions: 730 x 535 x 198 mm (H x W x D)
  • Weight: 26kg

The new series from SMA has an integrated emergency power supply which can be started manually in the event of a power failure. An optional transfer switching device can even supply all three phases fully automatically with a phase coupling in the event of a power failure.
