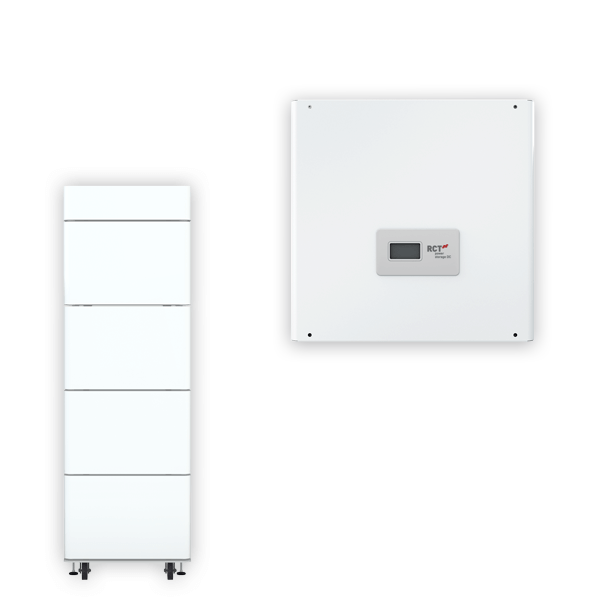

RCT Power Storage DC 8.0 with Battery 9.6

RCT Power Storage DC 8.0 with 8.6 kWh high-voltage battery

The RCT Power Storage is a 3-phase hybrid inverter. With the integrated high-voltage battery connection and two MPP trackers, a flexible battery storage system can be set up with the RCT Power Storage. The battery is a modular plug-in system. With a weight of 25 kg per battery module, it is easy to transport and install. In addition, the battery storage can be expanded at any time. In connection with the RCT Power Storage and Switch, all consumers can be supplied with the Power Battery 9.6 and photovoltaic system in the event of a power failure.

RCT will hire you for individual system planning free planning tool available.

package benefits

• Scalable and expandable
• Easy to transport and install thanks to the modular design and easy wiring
• Backup power supply possible with the optional RCT Power Switch
• German battery management system

Product features RCT Power Storage DC 8.0

• 3-phase mains connection
• 8.0kVA AC power
• 380 - 800V MPP voltage range
• transformerless concept
• 2 MPP trackers
• Interfaces: WIFI, LAN, RS485, multifunctional relay
• Dimensions: 570 x 585 x 200 mm (HxWxD)
• Weight: 26.0 kg
• IP42
• 10 year product guarantee

Product features RCT Power Battery 9.6

• 8.6 kWh usable storage capacity
• 9.6 kW discharge power
• Dimensions: 1360 x 340 x 340 mm (HxWxD)
• Weight: 126.0 kg
• Operating temperature: +5°C to 40°C
• IP42

scope of delivery

• RCT PowerStorage DC 8.0
• RCTPowerBattery 9.6
