Solarranch

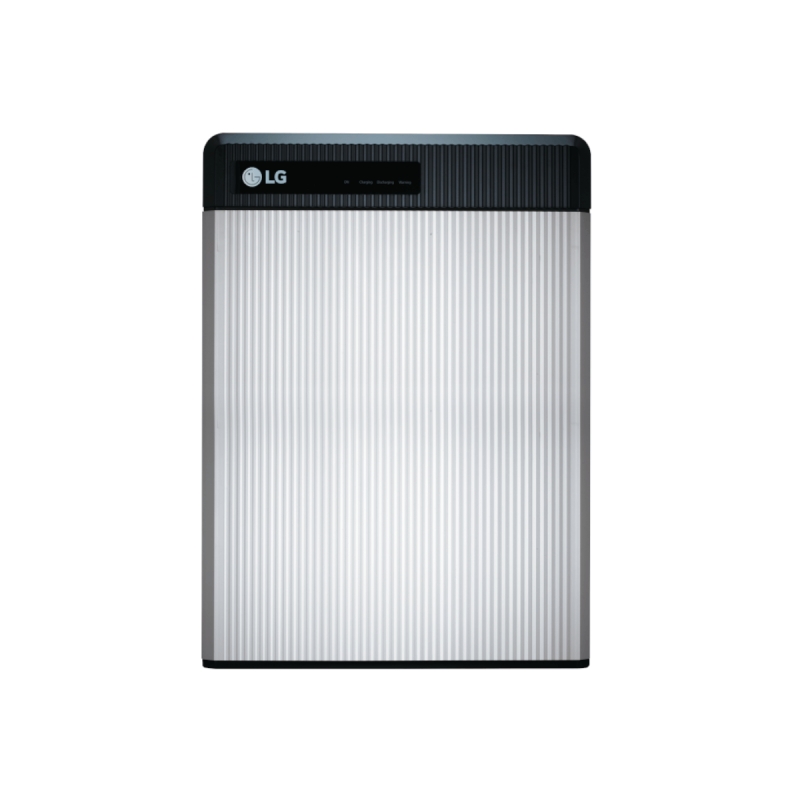

LG RESU 10H Prime

LG RESU 10H Prime

Regular price €4.999,00
Regular price Sale price €4.999,00
Sale Sold out
Shipping calculated at checkout.
  • LG Energy Solution
  • RESU10H Prime
  •  XXX
Battery type: High-voltage lithium NMC
net capacity: 9.6kWh
phases: 1
Guarantee: ten years

Prime time: The new LG RESU 10H Prime high-voltage battery

The warranty conditions require installation by a certified professional and registration on the portal. Get certified online by LG here.

The high-voltage storage system has been a big trend since 2016. LG Energy Solution presents its first high-voltage battery here and hits the bull's eye. A newly developed battery cell enables a particularly high energy density and compact dimensions of the new LG RESU high-voltage series. Due to the parallel connection, the power is also added, which makes a power of 10 kW and a capacity of 19.2 kWh with 2 x 10H. This capacity is particularly sufficient for single-family houses to keep self-consumption high. The efficiency is now over 90%. The Prime memories support RS485 and CAN.

product benefits

  • 400 V high-voltage battery
  • Modular system structure
  • RESU monitoring
  • Mature service concept
  • Firmware update via battery inverter
  • Remote battery monitoring
  • Scalability up to 2 units

product properties

  • 9.6 kWh usable
  • Max. power 5.0 kW
  • Communication: RS485 & CAN
  • Guarantee: 10 years upon registration
  • Dimensions: 504 x 817 x 295 mm (W x H x D)
  • Weight: 111.0 kg
  • Wall / floor mounting
  • Aluminum housing IP55

                          Downloads
