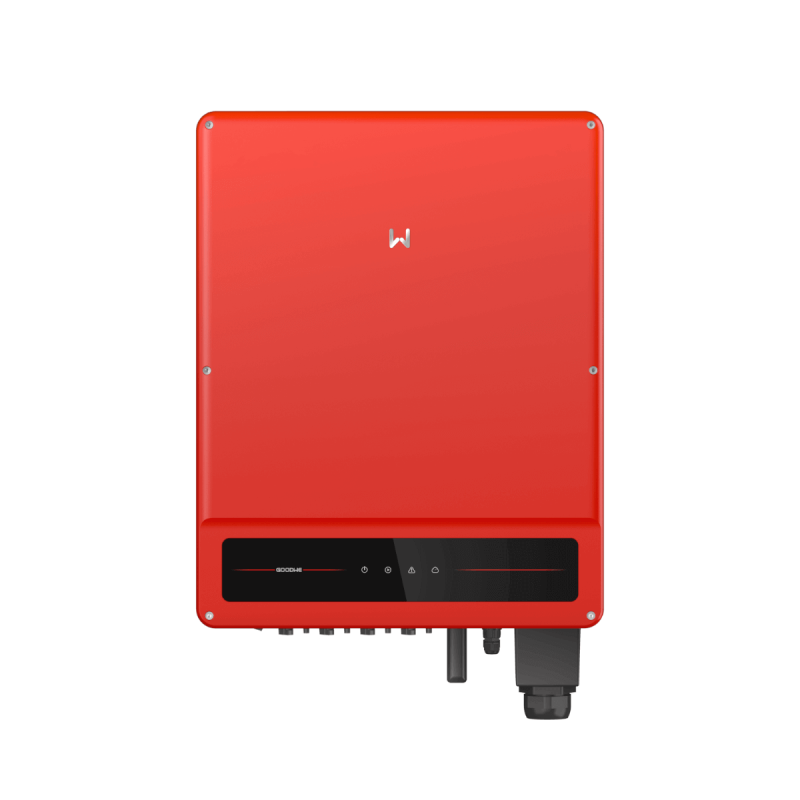

GoodWe ET Plus 16A - GW8KN-ET

The GoodWe hybrid inverter of the ET Plus 16A series is perfect for the residential sector. With a high input current of 16A, it is compatible with modern high-performance modules. An integrated switching device for backup power is installed in the inverter. This means that selected consumers can continue to be supplied with emergency power in the event of a power failure. The hybrid inverter is capable of black starts and can recharge solar energy. Additional consumers such as wall boxes and heat pumps can be integrated via a programmable potential-free contact. Will he GoodWe EV charger integrated, communication takes place via the SEMS portal.

product benefits

• Integrated switching device for backup power
• Black start capable
• Peak shaving function
• AC charging, expandable via the SDT G2 series, among other things
• DC ÜSS Type 2 integrated
• Direct connection to ripple control receiver
• Cascade operation of several ET devices with accessory SEC1000S Hybrid Combinerbox (Memodo 4407) possible!

Product characteristics GW8KN-ET

• Mains connection: 3 phases
• AC Power: 8.0kVA
• 8.0 kW emergency power output via separate output
• MPP trackers: 2
• String connections per MPPT: 1
• Max input current: 16A
• Max Short Circuit Current: 21.2A
• Battery connection for high-voltage battery (BYD, GoodWe, LG)
• Communication: RS485, WLAN (Optional LAN)
• Potential-free contact available (programmable via SolarGo app) (SG-Ready)
• Push-in terminals for the communication interfaces simplify installation
• 3-phase smart meter included
• WiFi module included
• Dimensions: 516 x 415 x 180mm (H x W x D)
• Protection class: IP 66
• Weight: 24.0 kg
