BYD LVS 20.0 & SolarEdge SE10K-RWS

Have SolarEdge inverters no MPP tracker, but two inputs for the SolarEdge module optimizers. With the fixed voltage technology the SolarEdge inverter always works in the optimum input voltage range, regardless of the number of modules and strings. The performance data of each individual is transmitted via the string line PV module optimizer transferred to the SolarEdge inverter and can be accessed via the Internet in the SolarEdge Monitoring Portal be visualized.

The new inverters are equipped without a display. The inverter is commissioned quickly and easily with the SolarEdge app on the smartphone.

With the integrated 48 V battery connection no wishes remain unfulfilled! BYD LV or LG Chem Batteries are compatible with this system.

Product advantages SolarEdge StorEdge three-phase inverter SE10K:

• Hybrid inverter for SolarEdge optimizers and 48 V batteries
• DC rated voltage 750 Vdc
• Very high efficiency of up to 98%
• Fast installation time thanks to the integrated StorEdge interface
• Larger battery selection thanks to 48 V battery voltage
• Lower overall costs thanks to 48 V battery technology

Product features SolarEdge StorEdge three-phase inverter SE10K:

• 10 kVA power 3-phase
• 5 kW battery connection 48 V
• DC or AC system with SolarEdge inverter
• 2 pairs of MC4 inputs
• Ethernet RJ45
• Protection class: IP65
• Dimensions: 853 x 316 x 193 mm (H x W x D)
• Weight: 37kg

Product advantages BYD Battery-Box Premium LVS 20.0:

• Maximum flexibility for every application with up to 64 modules connected in parallel
• The patented modular plug-in design requires no internal wiring, allowing for maximum flexibility and ease of use
• Cobalt-free lithium iron phosphate (LFP) battery: Maximum safety, service life and performance
• Compatible with leading 1 and 3 phase inverters
• Highest safety standards such as VDE 2510-50

Product features BYD Battery-Box Premium LVS 20.0:

• Usable capacity: 20.0 kWh
• Lithium Iron Phosphate Technology (LFP)
• Rated Voltage: 51.2V
• Max. output current 250 A
• Peak output current: 360A for 5 seconds
• Dimensions: 1410 x 650 x 298mm (H x W x D)
• Weight: 244kg
• Protection class: IP55
•

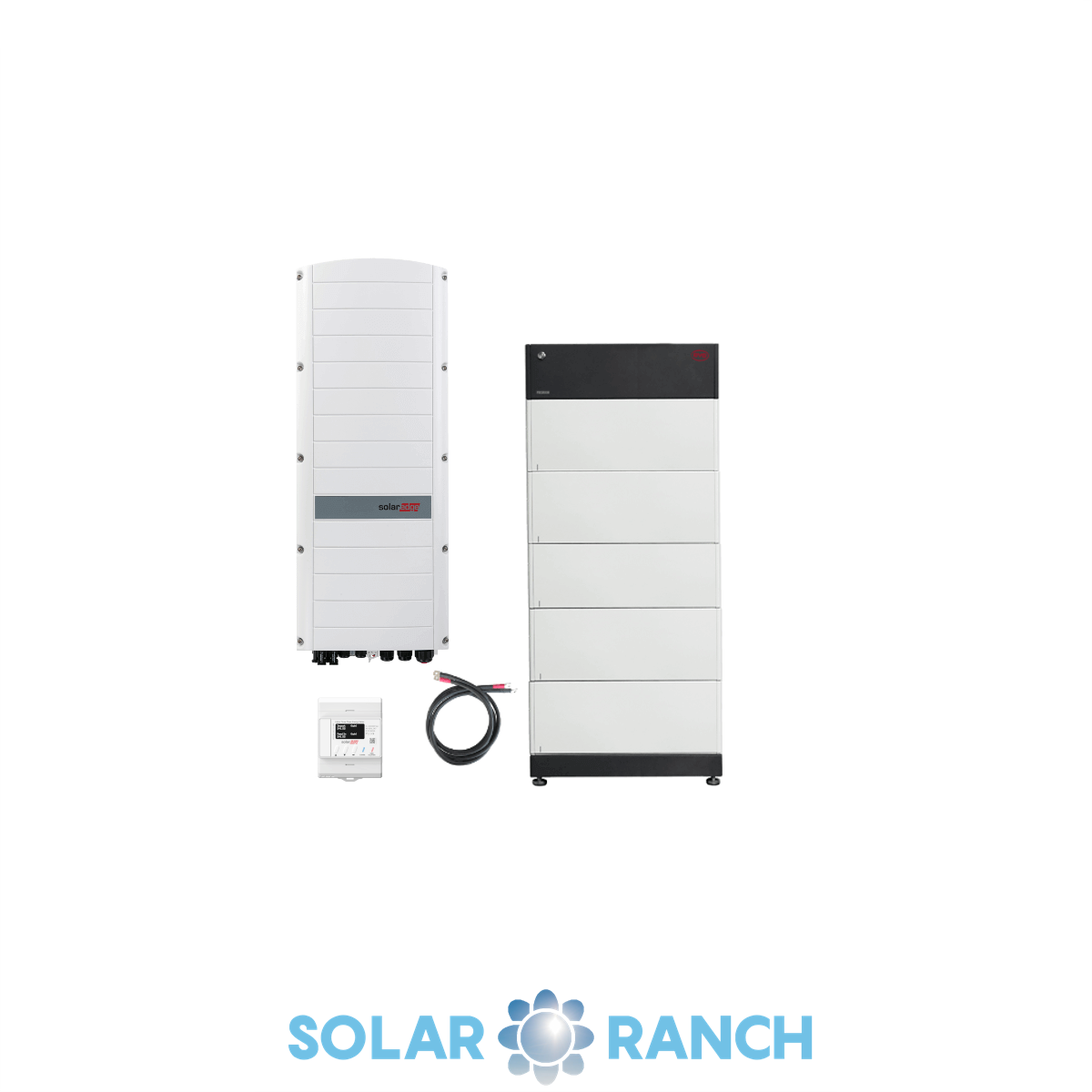

Scope of delivery:

• SolarEdge StorEdge three-phase inverter SE10K
• SolarEdge inline energy meters
• BYD Battery Box Premium LVS 20.0
• Battery connection set 35 mm², 2 m
• Patch cable 2 m
