BYD HVM 22.1 & Fronius Symo Gen24 6.0 Plus

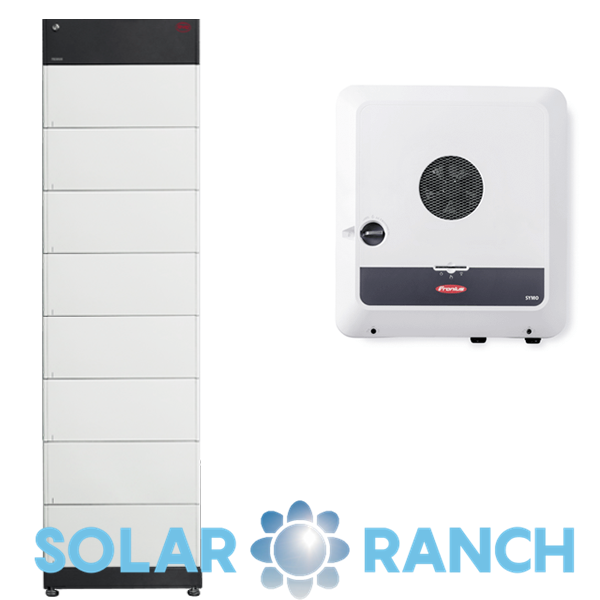

BYD Battery Box Premium HVM 22.1 with Fronius Symo Gen24 6.0 Plus

Long awaited and now within reach - the new hybrid inverters of the Gen24 series from Fronius. Equipped with numerous cutting-edge features in both the Primo and Symo versions. These range from a full range of communication interfaces to flexible emergency / backup power functions. The new HVS/HVM series from BYD can be connected via the powerful battery connection. These new high-voltage series are the ideal combination for Generation 24 from Fronius.

package benefits

• max. charging and discharging power 6.0 kW
• highly efficient DC coupled hybrid system
• Fronius PV Point (emergency power function)
• Unlimited battery upgrade possible
• Self-supporting BYD stack concept (up to 8 battery elements and 3 units)
• patented wireless connector system from BYD

Product features BYD Battery-Box Premium HVM 22.1

• Usable capacity: 22.08 kWh
• Cell technology: Lithium iron phosphate technology (LFP)
• Dimensions: 2110 x 585 x 298 mm (H x W x D)
• Weight: 319.0 kg
• Protection class: IP 55
• Application: on / off grid, backup

product benefits

• compact design
• efficient DC coupling
• high battery charging/discharging performance
• 3-phase backup power function
• complete interface package

Product features Fronius Symo Gen24 6.0 Plus

• Mains connection: 3-phase
• AC Power: 6.0kVA
• transformerless
• reverse polarity protection
• MPP trackers: 2
• Communication: integrated data logger with web server, 2 x Ethernet, WLAN, RS485, 6 x dig. IN/OUT, 6 x dig. IN (FRI)
• active cooling
• Dimensions: 594 x 527 x 180 mm (H x W x D)
• Weight: 24.0 kg
• Protection class: IP 66

Included in the package:

• BYD Battery Box Premium HVM 22.1
• Fronius Symo Gen24 6.0 Plus
