BYD HVM 16.6 & Fronius Symo Gen24 10.0

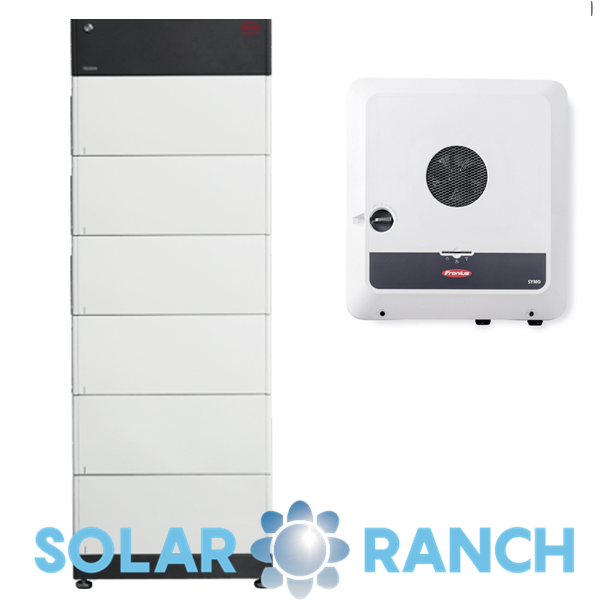

BYD Battery-Box Premium HVM 16.6 with Fronius Symo Gen24 10.0 Plus

Long awaited and now within reach - the new hybrid inverters of the Gen24 series from Fronius. Equipped with numerous cutting-edge features in both the Primo and Symo versions. These range from a full range of communication interfaces to flexible emergency / backup power functions. The new HVS/HVM series from BYD can be connected via the powerful battery connection. These new high-voltage series are the ideal combination for Generation 24 from Fronius.

Package benefits:

• highly efficient DC coupled hybrid system
• Fronius PV Point and backup power capability
• Unlimited battery upgrade possible
• Self-supporting BYD stack concept (up to 8 battery elements and 3 units)
• patented wireless connector system from BYD

Product features BYD Battery-Box Premium HVM 16.6:

• Usable capacity: 16.56 kWh
• Cell technology: Lithium iron phosphate technology (LFP)
• Dimensions: 1644 x 585 x 293 mm (H x W x D)
• Weight: 243.0 kg
• Protection class: IP 55
• Guarantee: 10 years
• Application: on / off grid, backup

Fronius Symo Gen24 10.0 Plus product features:

• Mains connection: 3-phase
• AC Power: 10.0kVA
• transformerless
• MPP trackers: 2
• Communication: integrated data logger with web server, 2 x Ethernet, WLAN, RS485, 6 x dig. IN/OUT, 6 x dig. IN (FRI)
• active cooling
• Dimensions: 594 x 527 x 166 mm (H x W x D)
• Weight: 25.0kg
• Protection class: IP 66
• Guarantee: 5 years

Included in the package:

• BYD Battery Box Premium HVM 16.6
• Fronius Symo Gen24 10.0 Plus
