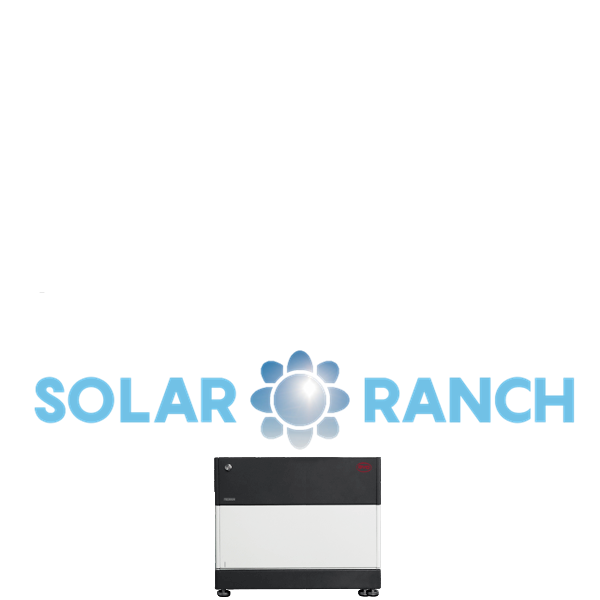

BYD Battery Box Premium LVS 4.0

BYD Battery-Box Premium LVS 4.0 - 48 V battery

The new system generation is based on the well-known memory and has all previous functions. With the Battery-Box Premium LVS, the new series offers almost 10% more capacity with slightly smaller dimensions and a significant reduction in the weight of the BCU (Battery Control Unit) reduces the overall weight. 90 A can now be supplied for 5 seconds per battery module, which means that the new 48 V series is also approved for off-grid applications. For commercial use, up to 64 battery modules with a total capacity of 256 kWh can be connected to form a system. For quick installation, the new BYD battery also relies on the proven plug-in system for easy installation without a battery cable. Only the BCU has to be connected to the inverter via a battery cable. This battery is therefore ideally suited for universal use in private homes and businesses. Thanks to the consistent software, the BYD Battery-Box Premium LVS is still compatible with inverters from SolarEdge, SMA and GoodWe.

product benefits

• Maximum flexibility for every application with up to 64 modules connected in parallel
• The patented modular plug-in design requires no internal wiring, allowing for maximum flexibility and ease of use
• Cobalt-free lithium iron phosphate (LFP) battery: Maximum safety, service life and performance
• Compatible with leading 1 and 3 phase inverters
• Highest safety standards such as VDE 2510-50
• Powerful emergency/backup power and off-grid functionality
• With the specific BYD connector for the avalanche transceiver batteries, installation is now even easier.

product properties

• Battery capacity: 4.0 kWh
• Rated Voltage: 51.2V
• Max Output Current: 65A
• Peak output current: 90A (5s)
• Weight: 64kg
• IP protection class: IP 55
• Dimensions (H/W/D): 478 x 650 x 298mm
• Cell technology: lithium iron phosphate (LFP)

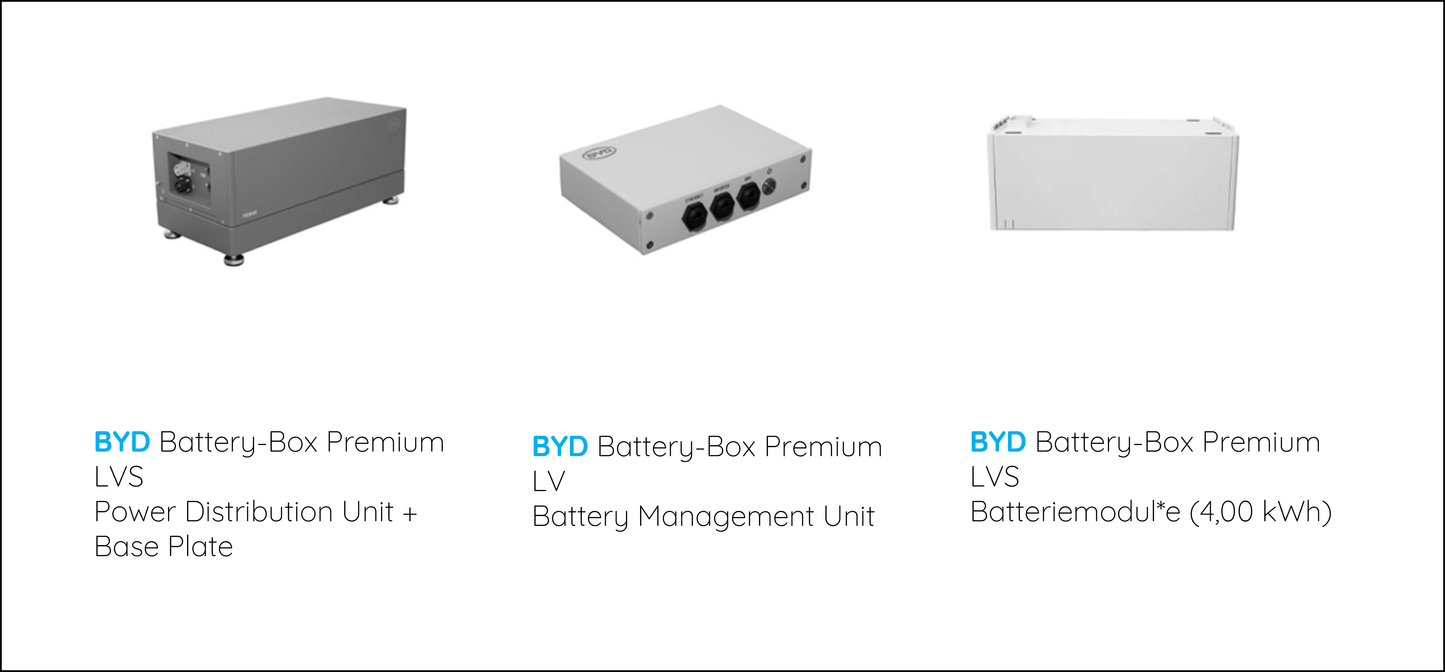

Scope of delivery:

• 1 x BYD Battery Box Premium LVS BMU
• 1 x BYD Battery-Box Premium LVS Base+Cover
• 1 x BYD Battery Box Premium LVS 4.0

Downloads

• Find out about funding programs
• BYD Battery-Box Premium LVS data sheet
• BYD Battery-Box Premium LVS Quick Guide
• BYD Battery-Box Premium LVS Service Guide and Checklist

Required accessories

Bat cable 48V mains parallel M8-BYD LVS 2.5m

Bat cable 48V - 50 mm2 - M8-BYD LVS 2.5m

BYD LVS connector set 70mm2
