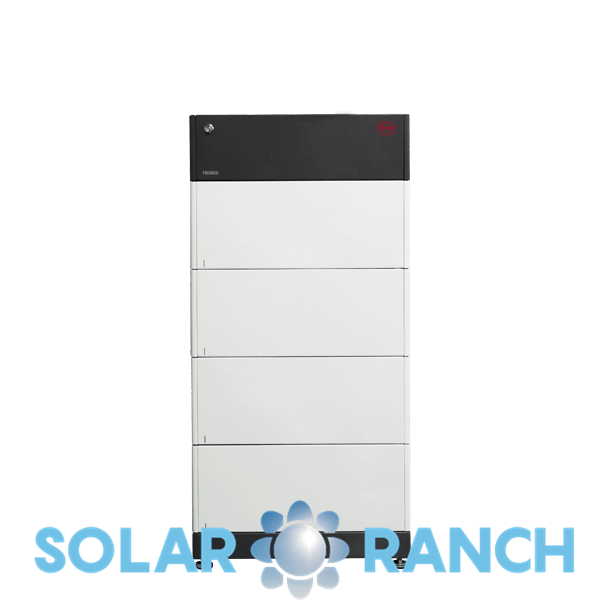

BYD Battery Box Premium LVS 16.0

BYD Battery Box Premium LVS 16.0

Regular price €0,00
Regular price Sale price €0,00
Sale Sold out
Shipping calculated at checkout.
  •  BYD
  •  XXX
Battery type: 48 volt lithium iron phosphate
net capacity: 16.0kWh
phases: 1

BYD Battery-Box Premium LVS 16.0 - 48 V battery

The new system generation is based on the well-known memory and has all previous functions. With the Battery-Box Premium LVS, the new series offers almost 10% more capacity with slightly smaller dimensions and a significant reduction in the weight of the BCU (Battery Control Unit) reduces the overall weight. 90 A can now be supplied for 5 seconds per battery module, which means that the new 48 V series is also approved for off-grid applications. For commercial use, up to 64 battery modules with a total capacity of 256 kWh can be connected to form a system. For quick installation, the new BYD battery also relies on the proven plug-in system for easy installation without a battery cable. Only the BCU has to be connected to the inverter via a battery cable. This battery is therefore ideally suited for universal use in private homes and businesses. Thanks to the consistent software, the BYD Battery-Box Premium LVS is still compatible with inverters from SolarEdge, SMA and GoodWe.

product benefits

  • Maximum flexibility for every application with up to 64 modules connected in parallel
  • The patented modular plug-in design requires no internal wiring, allowing for maximum flexibility and ease of use
  • Cobalt-free lithium iron phosphate (LFP) battery: Maximum safety, service life and performance
  • Compatible with leading 1 and 3 phase inverters
  • Highest safety standards such as VDE 2510-50
  • Powerful emergency/backup power and off-grid functionality
  • With the specific BYD connector for the avalanche transceiver batteries, installation is now even easier.

product properties

  • Battery capacity: 16.0 kWh
  • Rated Voltage: 51.2V
  • Max Output Current: 250A
  • Peak output current: 360 A (5s)
  • Weight: 199 kg
  • IP protection class: IP 55
  • Dimensions (H/W/D): 1177 x 650 x 298mm
  • Cell technology: lithium iron phosphate (LFP)

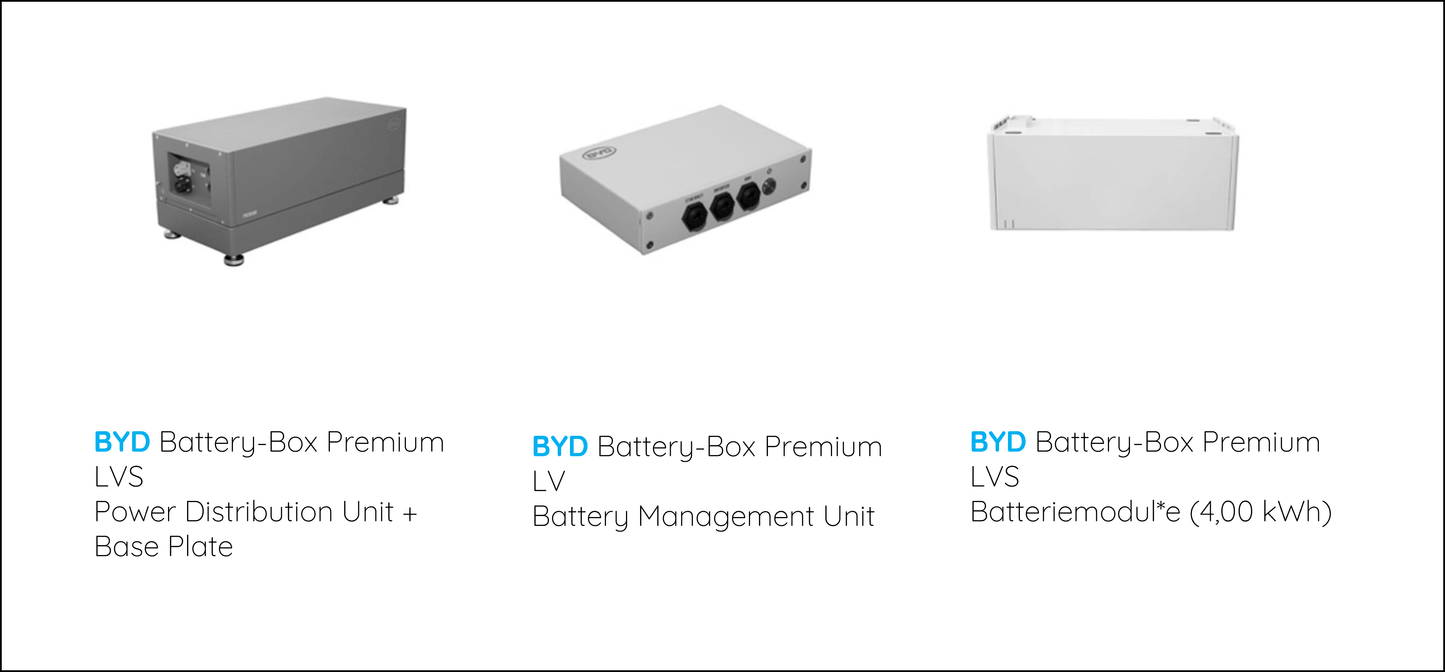

Scope of delivery:

  • 1 x BYD Battery Box Premium LVS BMU
  • 1 x BYD Battery-Box Premium LVS Base + Cover
  • 4 x BYD Battery-Box Premium LVS 4.0


                  Required accessories

                  Bat cable 48V mains parallel M8-BYD LVS 2.5m

                  Bat cable 48V - 50 mm2 - M8-BYD LVS 2.5m

                  BYD LVS connector set 70mm2
