BYD BATTERY BOX PREMIUM HVM 22.1 & Sungrow Hybrid HV SH10RT

BYD BATTERY BOX PREMIUM HVM 22.1 & Sungrow Hybrid HV SH10RT

Regular price €10.499,00
Regular price Sale price €10.499,00
Sale Sold out
Shipping calculated at checkout.

BYD Premium HVM 22.1 with Sungrow SH10RT-V112 Power Bundle

These new three-phase hybrid inverters have a three-phase emergency power output with three-phase current that is 100% capable of unbalanced loads. Together with the high-voltage battery connection and 2 independent MPP trackers, the Sungrow inverter leaves nothing to be desired. Up to date, this device is configured via the iSolarCloud Assistant and sends its data to the free iSolarCloud portal or iSolarCloud app via the already integrated WiFi or Ethernet interfaces. RS485 (Modbus RTU) and Ethernet (Modbus TCP) can be used to connect third-party data loggers. A 3-phase smart meter is already included.

Product advantages BYD Premium HVM:

  • Award-winning efficiency thanks to true series connection
  • The patented modular plug-in design requires no internal wiring, allowing for maximum flexibility and ease of use
  • Cobalt-free lithium iron phosphate (LFP) battery: Maximum safety, service life and performance
  • Compatible with leading 1 and 3 phase inverters
  • Highest safety standards such as VDE 2510-50
  • Powerful emergency/backup power and off-grid functionality

Benefits Sungrow SH10RT-V112

  • Input voltage range from 150-1000V
  • High efficiency of up to 98.0%
  • natural convection
  • AC + DC overvoltage protection 2 integrated
  • external connections, no need to open the inverter
  • integrated spirit level
  • SG-Ready contact available (to control e.g. heat pump)
  • Noise emission 30dB (A)

Product features BYD Premium HVM:

  • 22.08 kWh battery capacity
  • Lithium Iron Phosphate Technology (LFP)
  • 409V nominal voltage
  • 50A max output current
  • 75A for 5 seconds
  • 319kg
  • IP55
  • 2110x585x298 mm (H/W/D)
  • On- and off-grid capable

Product Features Sungrow SH10RT-V112

  • 10.0 kVA power 3-phase
  • approx. 10.2 kW max. battery charging / discharging capacity
  • 2 MPP trackers 150-1000V, at rated power 210-850V
  • 1 MC4 inputs per MPPT
  • battery connection
  • WIFI adapter already included
  • Ethernet interface
  • Cable cross section AC connection 6 - 10mm² possible
  • Cable cross section DC connection 4 - 6 mm² possible
  • integrated reverse polarity protection
  • 3-phase smart meter included
  • Dimensions 540x460x170 mm (WxHxD)
  • IP65
  • Weight 26kg

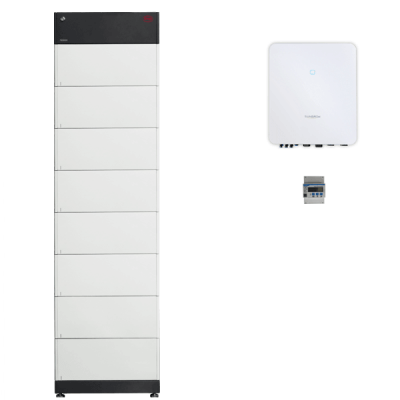

Included in the package:

  • BYD Battery Box Premium HVM 22.1
  • Sungrow SH10RT-V112
  • Chint DTU666 Smart Meter 3 phase direct measurement 80A
View full details
