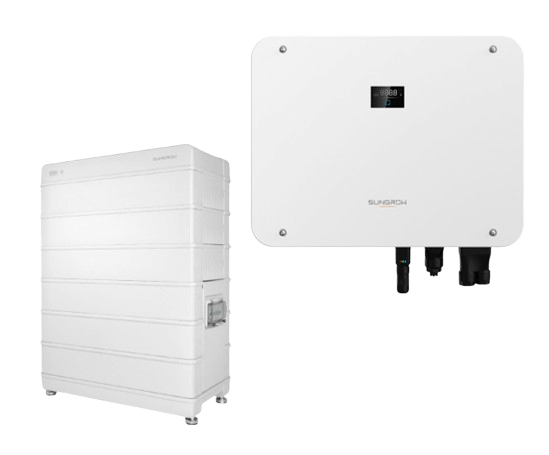

Sungrow SBR256 battery

Sungrow SBR256 high voltage lithium iron phosphate battery

The Sungrow SBR battery storage starts directly with 8 modules. The power is the maximum of 25.6 kWh. Up to 4 units can be operated in parallel in a capacity range of 9-100 kWh. This makes the system very flexible. Due to the low weight of only 33 kg per module and the slim design, the memory can be installed by one person via plug and play.

The Sungrow 3-phase hybrid inverter recognizes the battery storage after installation and automatically integrates it into the system. The optimally coordinated emergency power system with state-of-the-art load control and a switching time of less than 20 ms offers maximum reliability.

product benefits

• Permanent 30 A charging and discharging current possible
• Up to 4 units can be connected in parallel for a capacity range between 9-100 kWh
• Certified multi-level protection concept including VDE 2510-50
• Due to its low weight and compact design, it can be installed by just 1 person
• Plug and play between the individual battery modules
• Powerful emergency/backup power and off-grid functionality

Product features Sungrow SBR256 storage with 25.6 kWh

• Battery capacity: 25.6 kWh
• Rated Voltage: 512V
• Max Output Current: 30A
• Peak output current: 42A for 10s
• Weight: 279 kg
• Protection class: IP55
• Dimensions: 625 x 1195 x 330mm

Scope of delivery:

• 8 x Sungrow SBR 3.20kWh Battery Module
• 1 x Sungrow SBR Socket and Accessories
